Single Head Automatic Pipe Bending Machine Touch Screen Control 220v / 380v 4KW

Zhangjiagang Huipu Machinery Manufacturing Co., Ltd
Contact Now

Single Head Automatic Pipe Bending Machine Touch Screen Control 220v / 380v 4KW

  • 1
  • 2

Brand Name : HUIPU

Model Number : DW38

Certification : ISO9001

Place of Origin : JIANGSU, CHINA

MOQ : 1 SET

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5 SETS/WEEK

Delivery Time : 10 DAYS

Packaging Details : 1 SET/WOODEN CASE

Product name : single-head pipe bending machine of customized

Model : DW38NC

Type of machine : automatic pipe bending machine

Maximum applicable stainless steel pipe : Φ32*1.5t

Maximum applicable copper pipe : Φ45*2.0t

Application : water heater fittings

Contact Now

Light-duty series automatic pipe bending machine applying to cooling system fittings

-- Brief introduction

NC pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying, bridges, ships, furniture, decoration and other aspects of pipe laying and repair, which has many functions, reasonable structure, simple operation, easy movement, quick installation and so on. It can be operated without deliberate training. It can carry out three-dimensional three-dimensional bending pipe processing methods. Only the input of the coordinate size can realize the simulation of bending pipe processing. For a variety of complex pipe bending operations, our pipe bending machine can easily and quickly change the processing mode, can perform memory editing, make the processed data archived so that it can be used directly next time, with high-speed operating efficiency. Our products with the perfect operating system, can reach the level of high-end processing machine tools.

-- Machine characteristics

1. It has various functions can be chosen, such as manual operation, automatic, semi-circulation, full-circulation and others.

2. Two angle setting, 0° to 185° is chosen at will. It can choose an angle or two angles continuously.

3. English display screen.

4. Man to machine dialogue operation.

5. Adopting solenoid valve and integrated circuit to control each motion separately, which will extend the life of the parts of hydraulic system.

6. Suitable for the bending of different diameter pipes.

-- Main technical parameter

Maximum applicable carbon steel pipe Φ38*1.5t
Maximum applicable stainless steel pipe Φ32*1.5t
Maximum coring length 1700mm
Maximum bending radius 200mm
Maximum bending angle 190°
Motor power 4KW
Maximum oil pressure 14MPa
Weight 830kg
Dimension 2500*750*1300mm

-- Main application

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares, automobile fittings, brake lever, silencer, seats, motorcycle, body-building equipment, air conditioner, bicycle, steel-made furniture, sanitation equipment and other manufacturing trades.

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Company service

Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

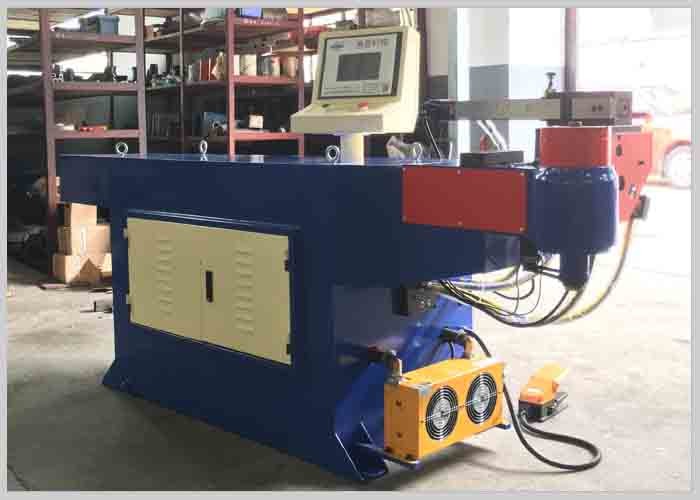

-- Pictures of machine

Single Head Automatic Pipe Bending Machine Touch Screen Control 220v / 380v 4KW
